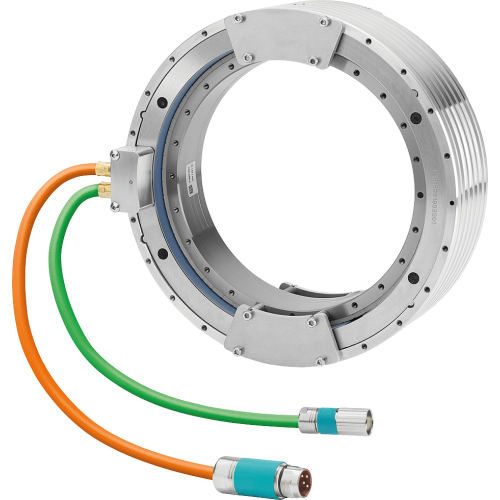

1FW6090-0PB07-0KD3

SIMOTICS T высокомоментный электродвигатель; components 3-phase synchronous motor; external cooling jacket; axial cable outlet; power cable 0.5m with connector size 1; signal cable 0.5m with M17 connector; diameter 230 mm; Length 110 mm; max. torque 251 Nm; max. speed 220rpm; max. current 16A eff; when using the direct motors in fork heads for machine tools or robots, a license for the US patent US5584621 and the corresponding worldwide property rights may be required with PTC130 and Temperature sensor Pt1000
