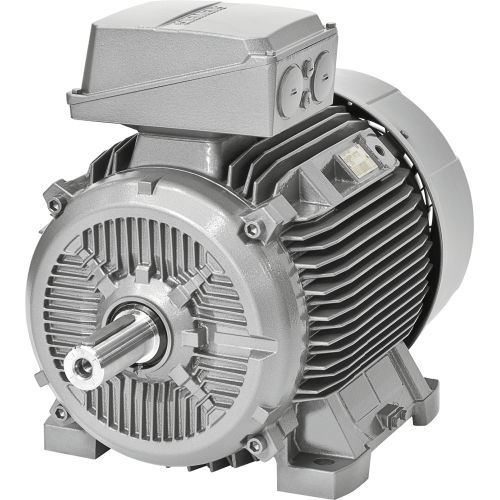

1LE1503-2AC44-0GB4-Z D04+F74+H00+M11+N30+R50

3 AC 50 Hz 500 VD Низковольтный электродвигатель IM V 1 without canopy, flange: SIMOTICS SD TYPE: 1CV3204C FF350 (A400) Low-voltage motor, IEC Squirrel-cage rotor, 3 PTC thermistors for self-ventilated, IP55 disconnection (2 terminals) Terminal box at top Temperature class 155(F) according to 130(B) cast iron D04=Coolant temperature -30 to +40 °C frame Basic line Premium F74=Sheet metal fan cover Efficiency IE3, 60 Hz, P60: IE2 6-pole * Size 200L, * 18.5 H00=Canopy kW (50 Hz) 22 kW (60 Hz) M11=Rating plate made of stainless steel N30=Increased humidity/temp. with 30 to 60 g water per m3 air R50=Larger terminal box
