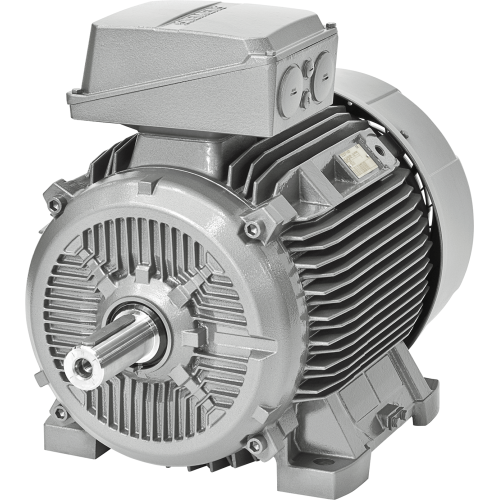

1LE1592-1EB42-1FK4-Z B02+D47+Q80

SD-VSD10 motor type: 1CV1184B IEC low-voltage motor, ASM-KL self-cooled, basic efficiency temperature class 155(F) according to 155(F) gray cast iron housing, IP55 only for converter operation 4-pole * size 180L standard color RAL 7030 if no order code is specified for selecting another color.? Purchase of this product is exclusively governed by the Innomotics T&Cs located at https://www.innomotics.com/ terms-and-conditions 22 kW (1500 rpm) 25.3kW (1800rpm) *36.5kW (2610 rpm) 3 AC 50 Hz 380 VY 3 AC 87 Hz 380 VD 3 AC 60 Hz 440 VY IM B 5, flange: FF300 (A350) 1 Pt1000 resistance thermometer (2 terminals) Terminal box at top B02=Acceptance test certificate 3.1 according to EN 10204 D47=TR CU product safety certificate EAC for Eurasian customs union Q80=Extension of the liability for defects by 12 to a total of 24 months as of delivery
