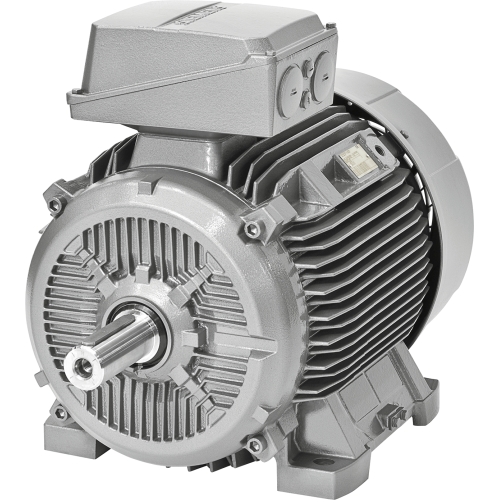

1LE1603-2AC53-3DB4-Z L22+L51

3 AC 50 Hz 380 VD/660 VY * Низковольтный электродвигатель SIMOTICS SD TYPE: 1CV3205C IM V 6, Low-voltage motor, IEC 3 PTC thermistors for disconnection (2 terminals) Squirrel-cage rotor, Terminal box at top self-ventilated, IP55 L22=Bearing for increased Temperature class 155(F) transverse forces according to 130(B) cast iron L51=Bearing insulation NDE frame Performance line Premium Efficiency IE3, 60 Hz, P60: IE2 6-pole * Size 200L, * 22kW (50 Hz) 26.5kW (60 Hz)
