7ME6362-3MC33-4JA3-Z A02+D01+F01+J50

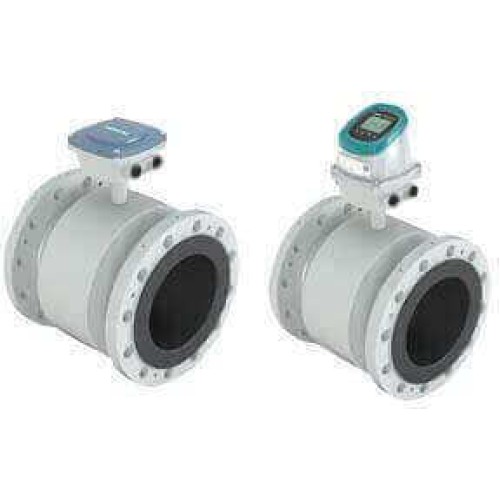

SITRANS FMS300 Magnetic flow sensor, flanged, diameter DN15…2200, 1/2"…88" for measuring the volume flowrate of liquids with an electr. conductivity >5 µS/cm. Suitable for applications in the water & wastewater, mining, power generation, O&G and chemical industry. Transmitter SITRANS FMT020 DN 80, 3 inch EN 1092-1 PN 16 flanges, Standard face-to-face length for sensor (1.25 x DN, DN 700 / 28" … DN 1200 / 48") Stainless st. AISI 304 flange with corrosion-resistant coating acc. to EN ISO 12944 class C4 PTFE liner Tantalum electrodes Polycarbonate housing, remote design (wall-mounting unit, 4 cable glands (grey) and sensor terminal board included) . 100...240 V AC, 50/60 Hz M20x1.5, Polyamide, grey cable glands (2 pcs.) High accuracy factory calibration +/- 0.2% of act. Value (DN ≤ 200, ≤ 8") HART with 4…20 mA output, active or passive Without grounding electrodes
